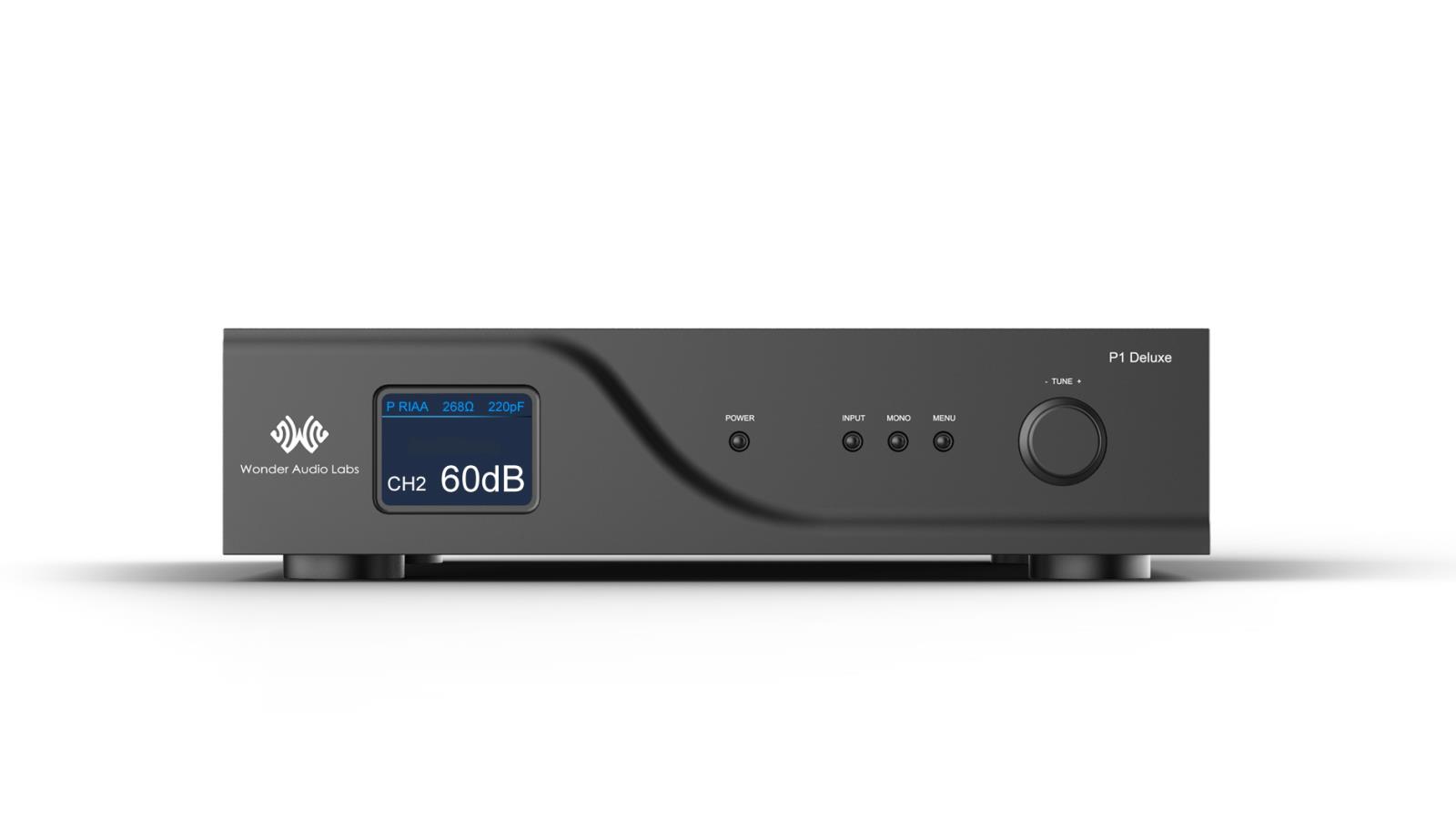

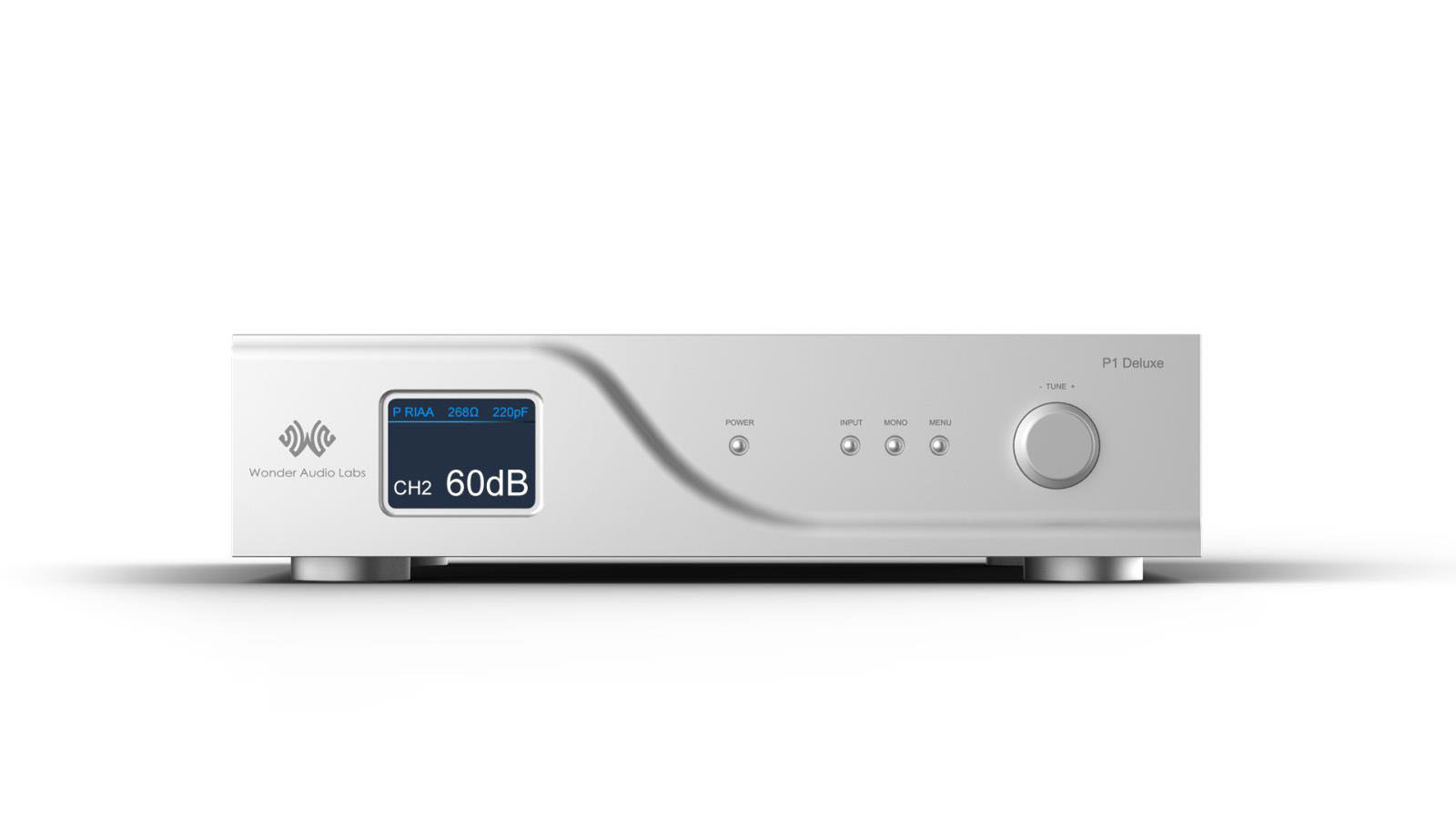

Model : P1 Deluxe
Features & Applications:
- ● Advanced vacuum tube based phono stage amplifier

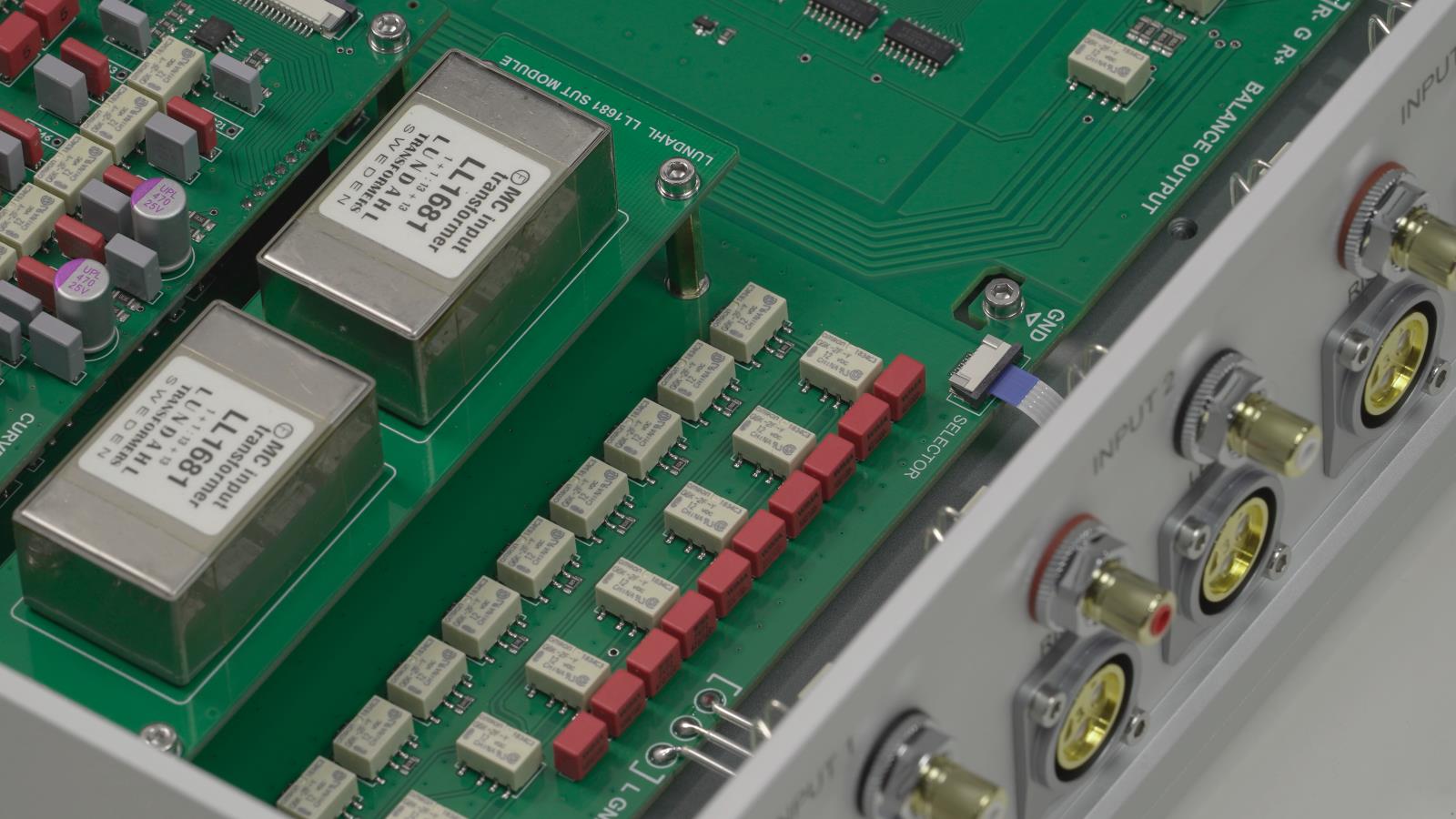

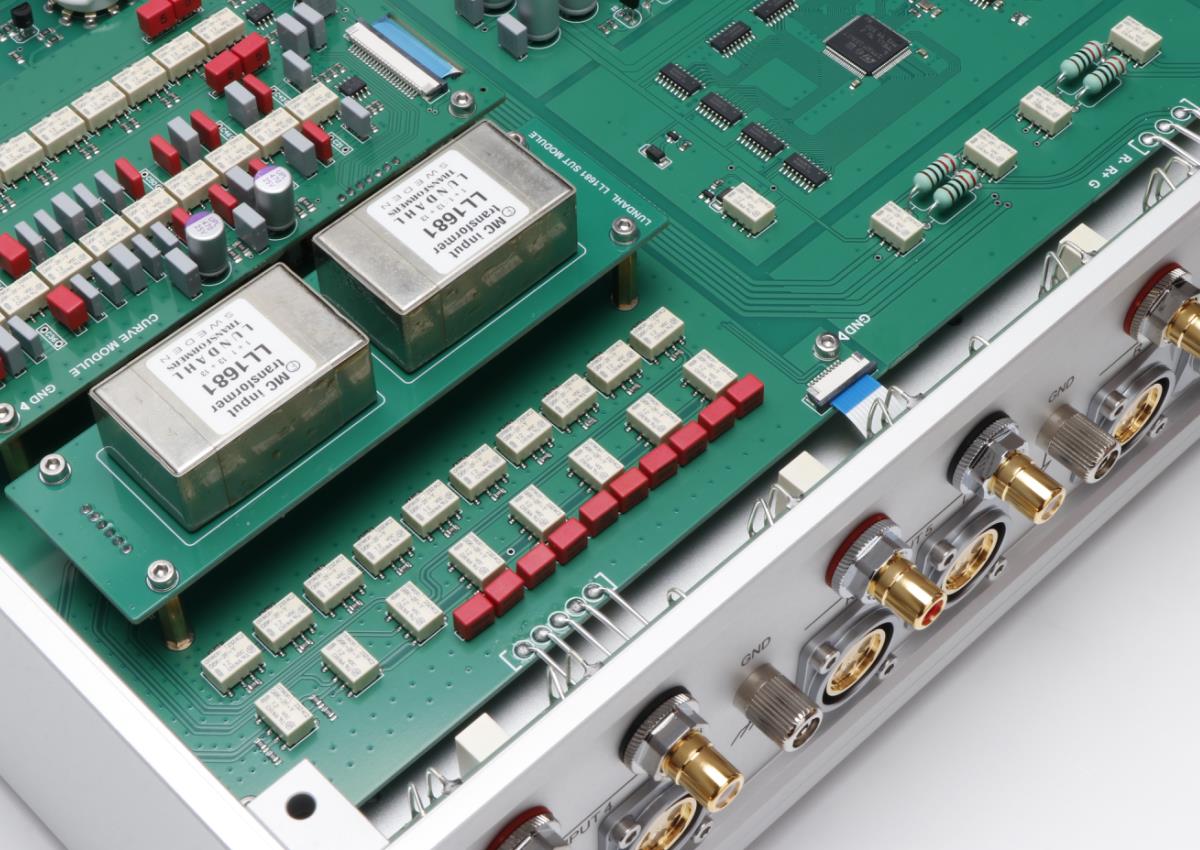

- ● Supports moving coils (MC) and moving magnet (MM) cartridges
- ● Matches MC cartridges with loading impedance up to 1000 levels from 10Ω to 1020Ω
- ● Adopts German Mondorf’s best capacitors - Silver Gold Oil series
- ● Supports 100 composite EQ curves, 2 RIAA modules (passive and active)
Technical Specifications:

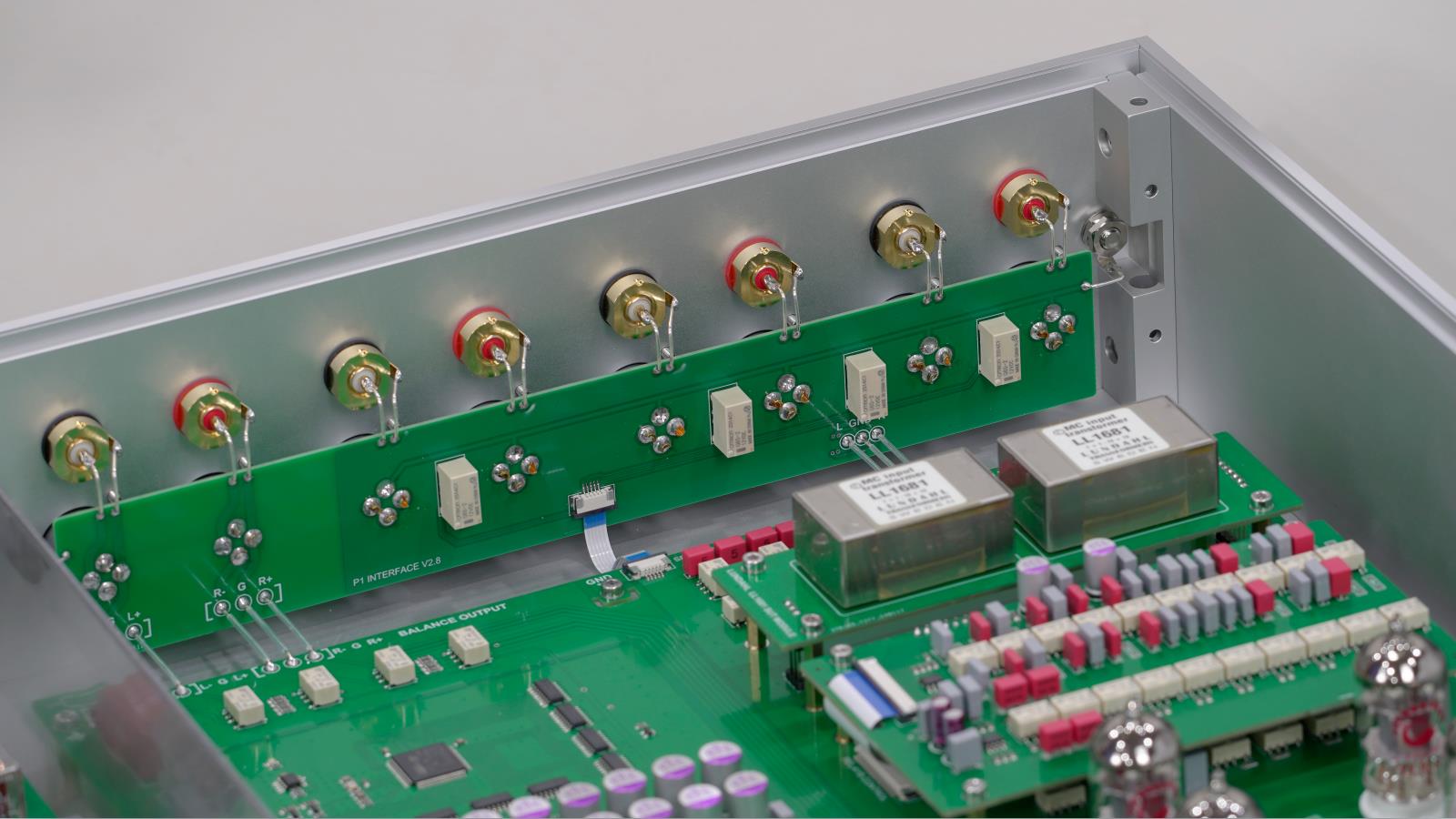

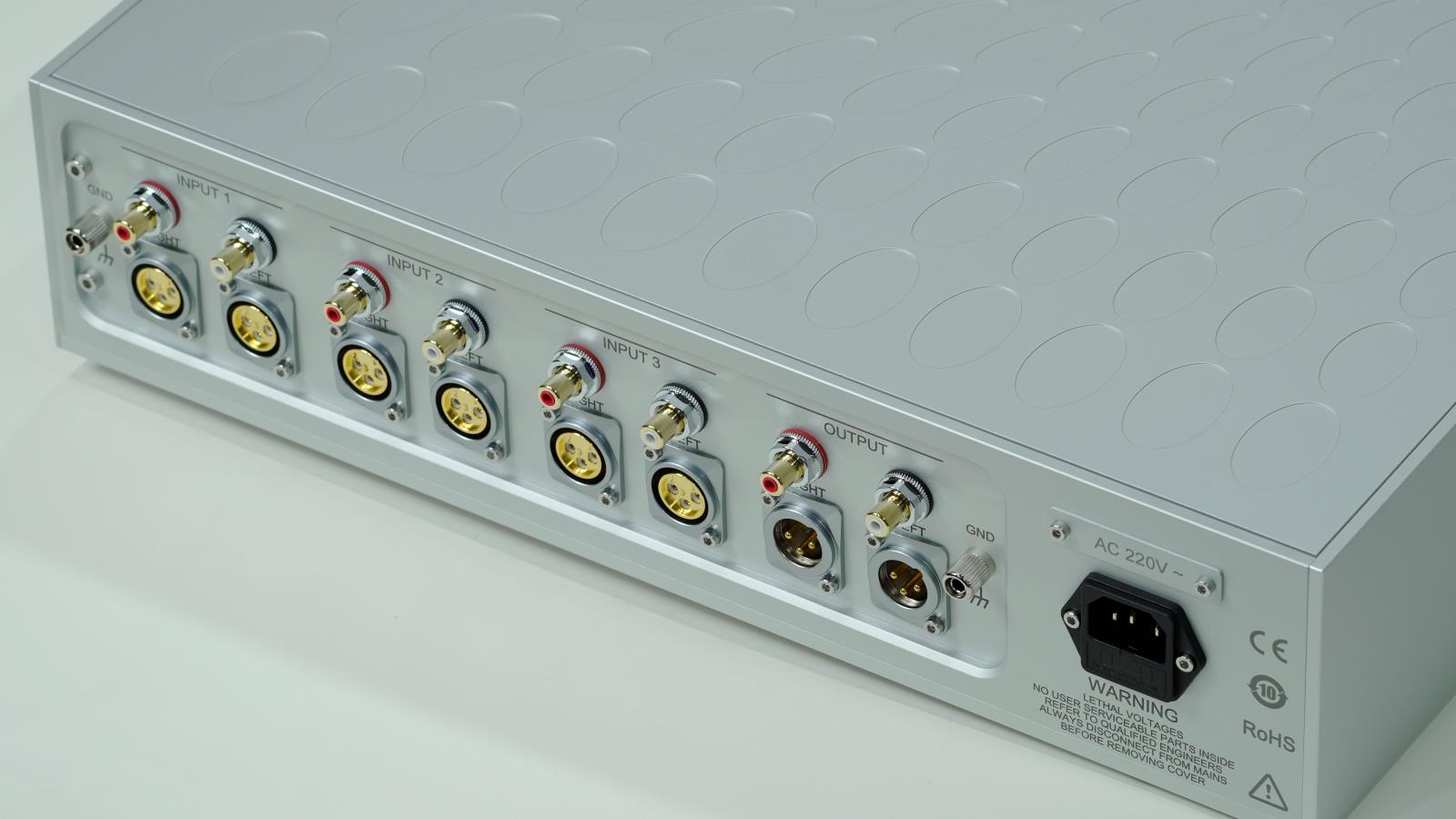

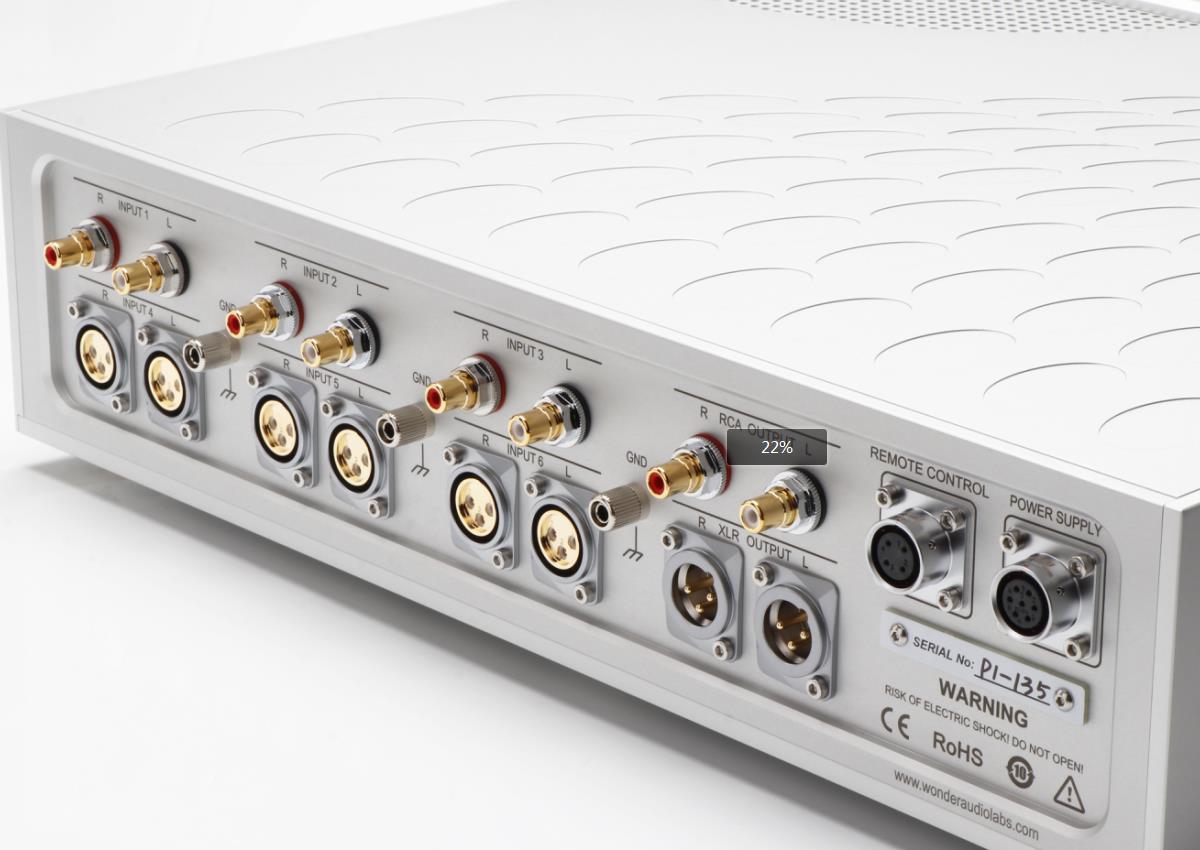

| Inputs | 3 x RCA, 3 x XLR, All support MM & MC cartridge |
| Outputs | 1 x RCA, 1 x XLR |
| Frequency response | 20 Hz -- 20k Hz |
| Toltal Harmonic Disrortion | < 0.02% max @1kHz |
| Signal to noise ratio | 100 dB |
| Dynamic range | 110 dB |
| Input impedence | 1000+ options : 10Ω -- 1020Ω for MC, 47kΩ for MM |
| Input capacitance | 32 options : 0pF – 1800pF |
| Curves | Active RIAA, Passive RIAA, 100 OLD EQ curve |
| Gain | 40dB,42dB,45dB,50dB, for MM, 55dB,60dB, 65dB,70dB for MC |

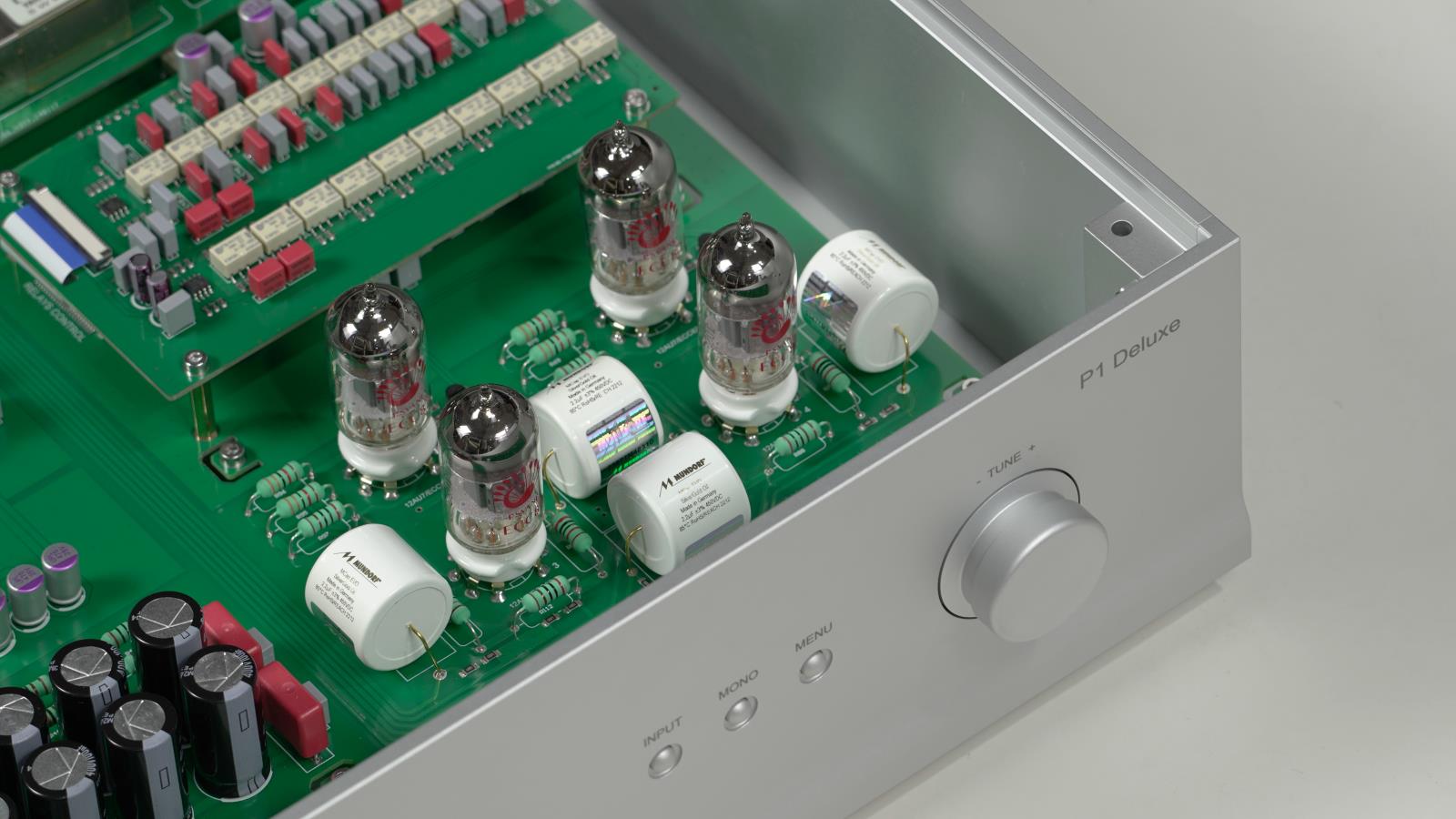

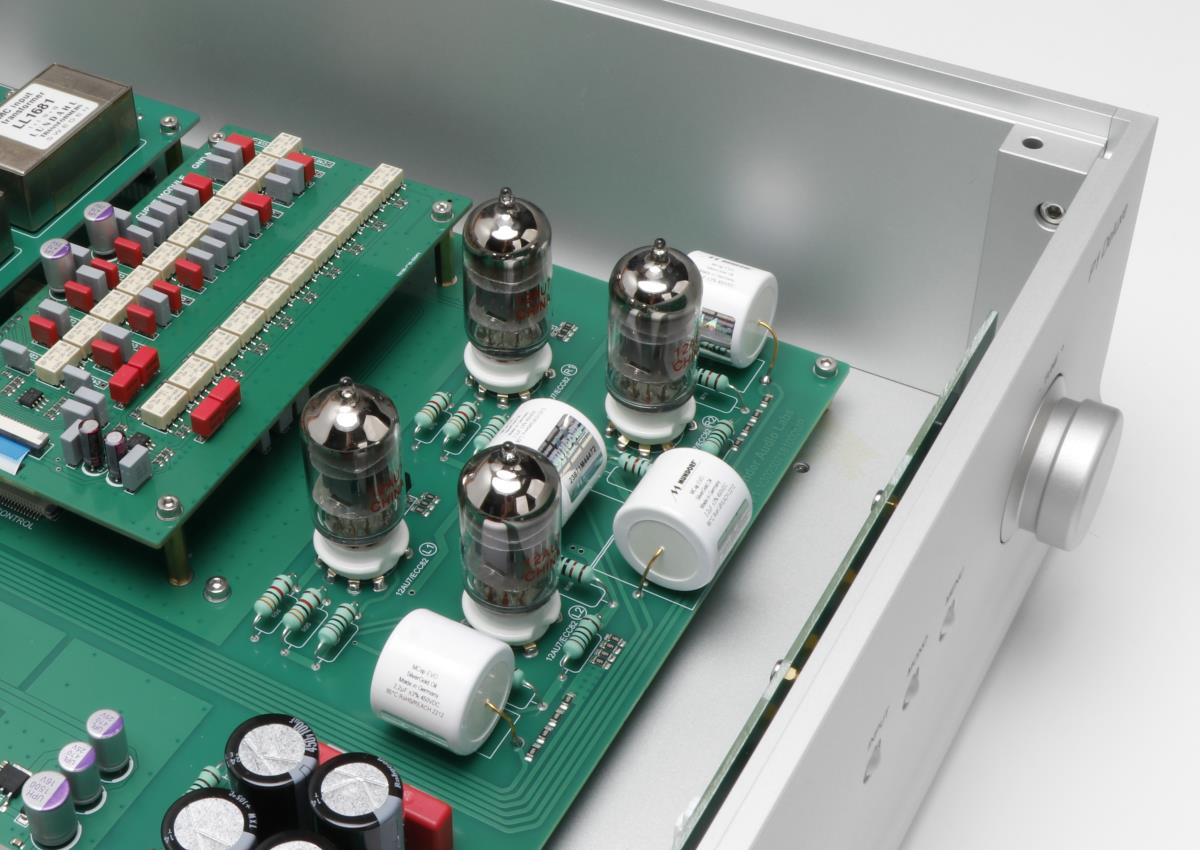

| Vacuum tube | 4 x ECC82 / 12AU7 |
| Power supply | AC 110V / 220V, 50 -- 60Hz |
| Power consumption | 40 Watts |
| Weight | > 12.5 kg - net |
| Dimensions | 435mm W | 100mm H | 400mm D |

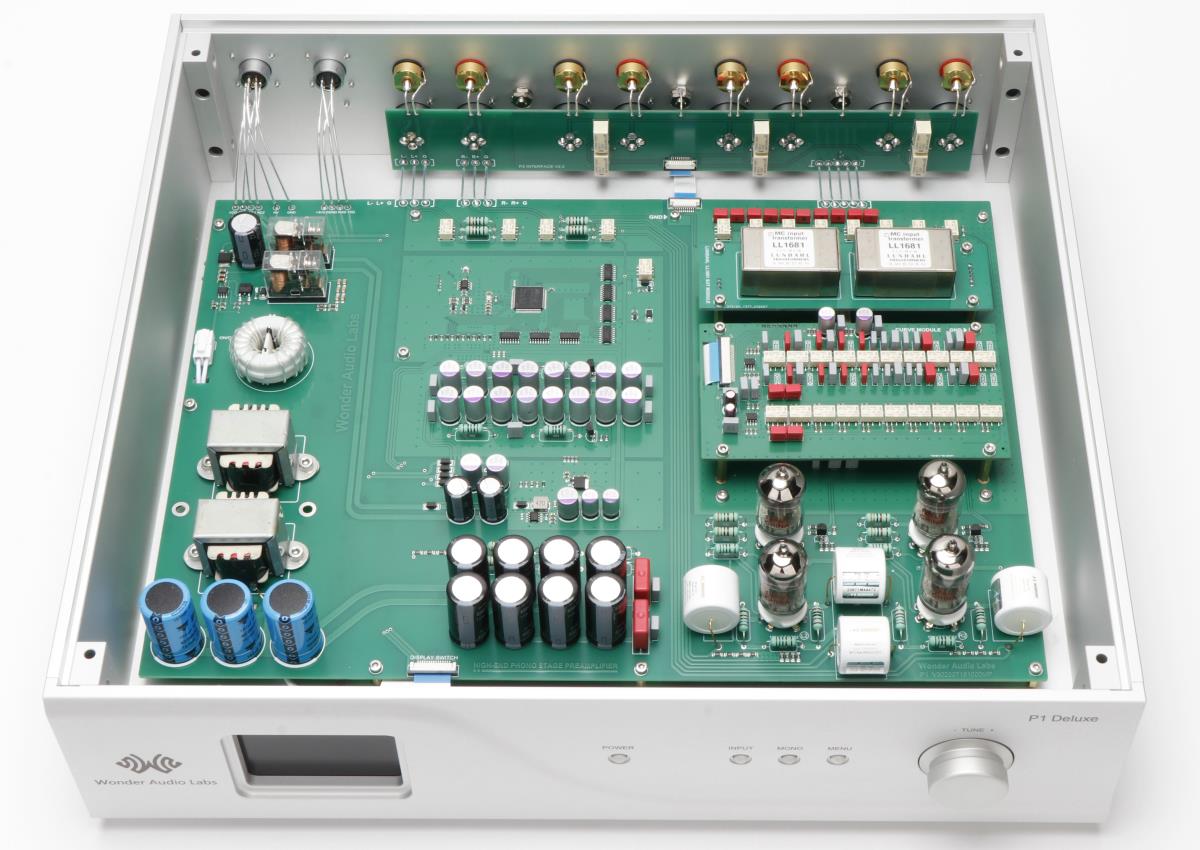

Details reveal :
- ● Mono/Stereo mode
- ● Pure silver internal wiring

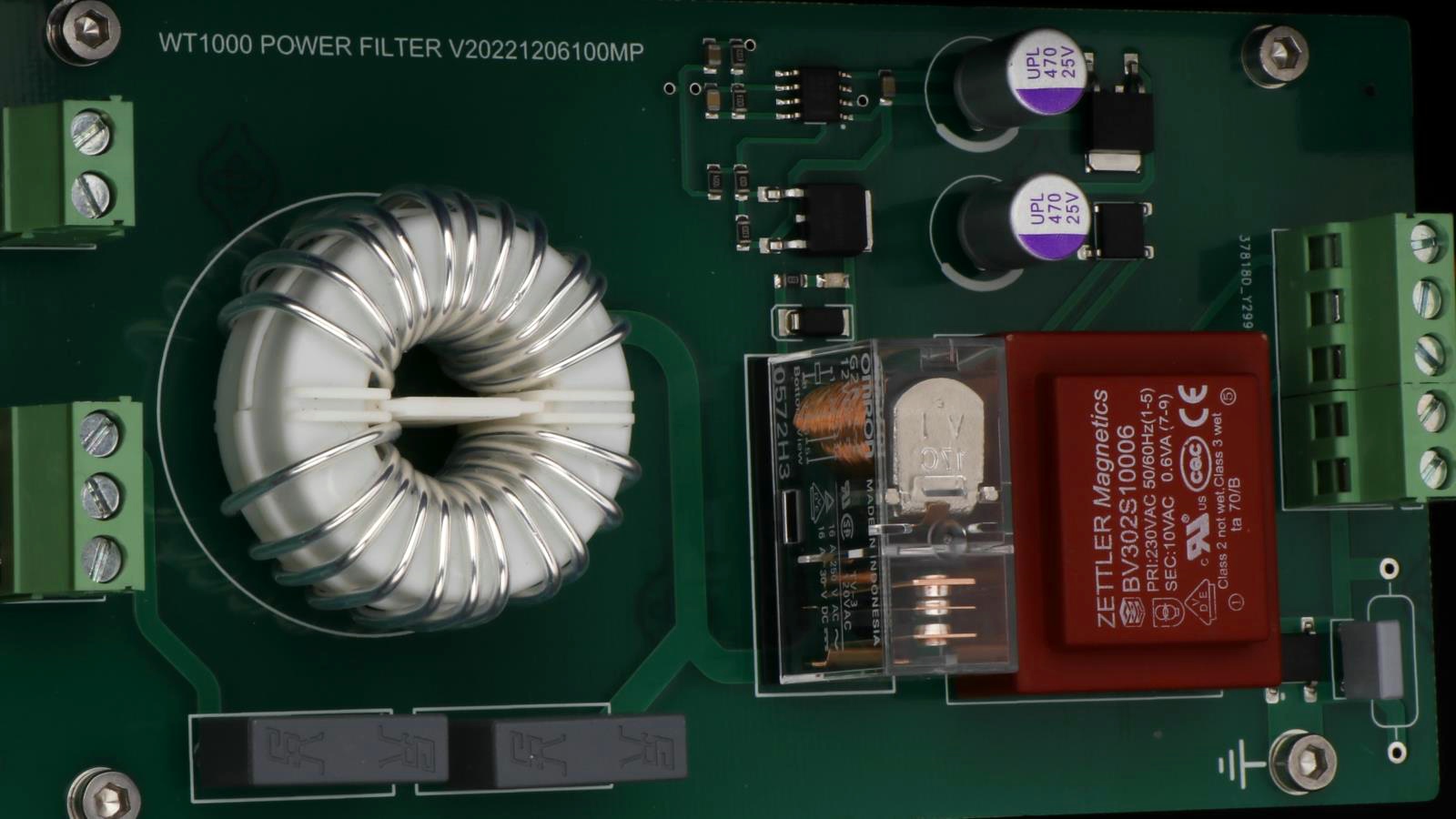

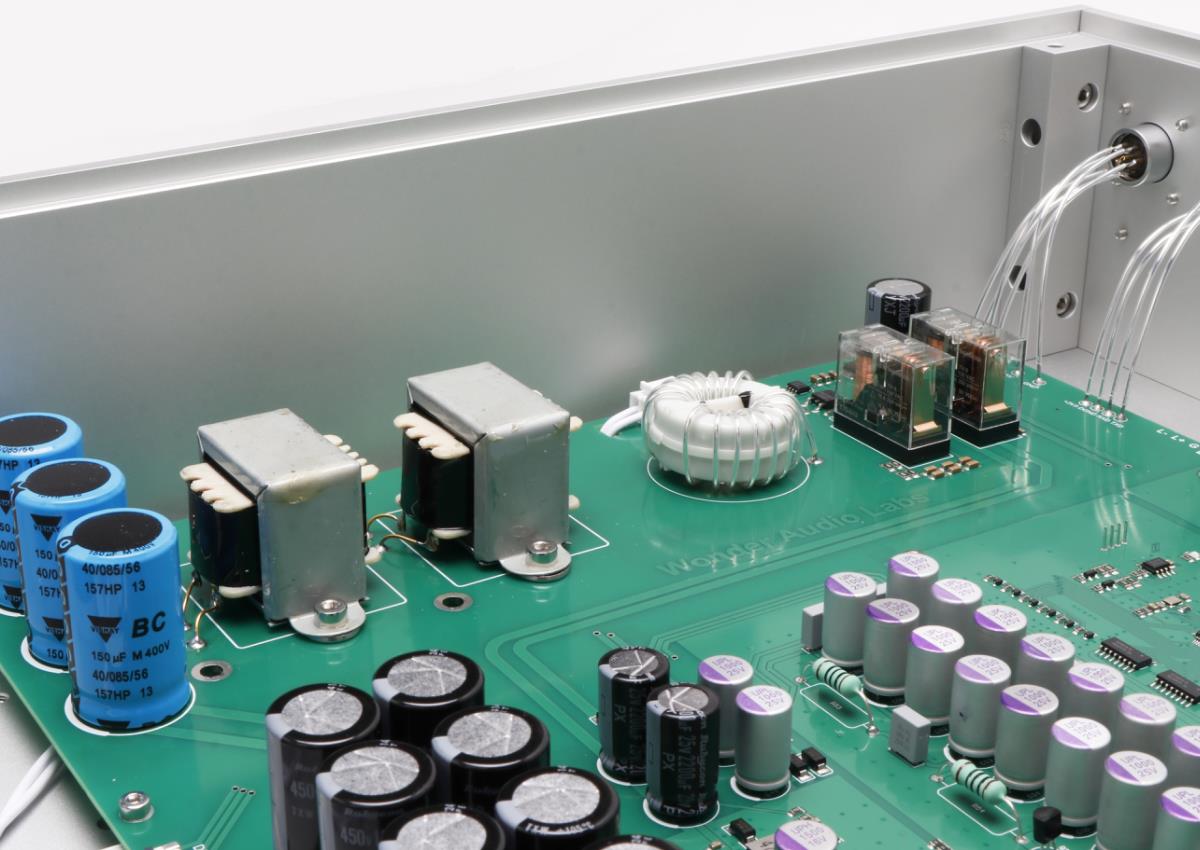

- ● Pure Silver Inductive Filter

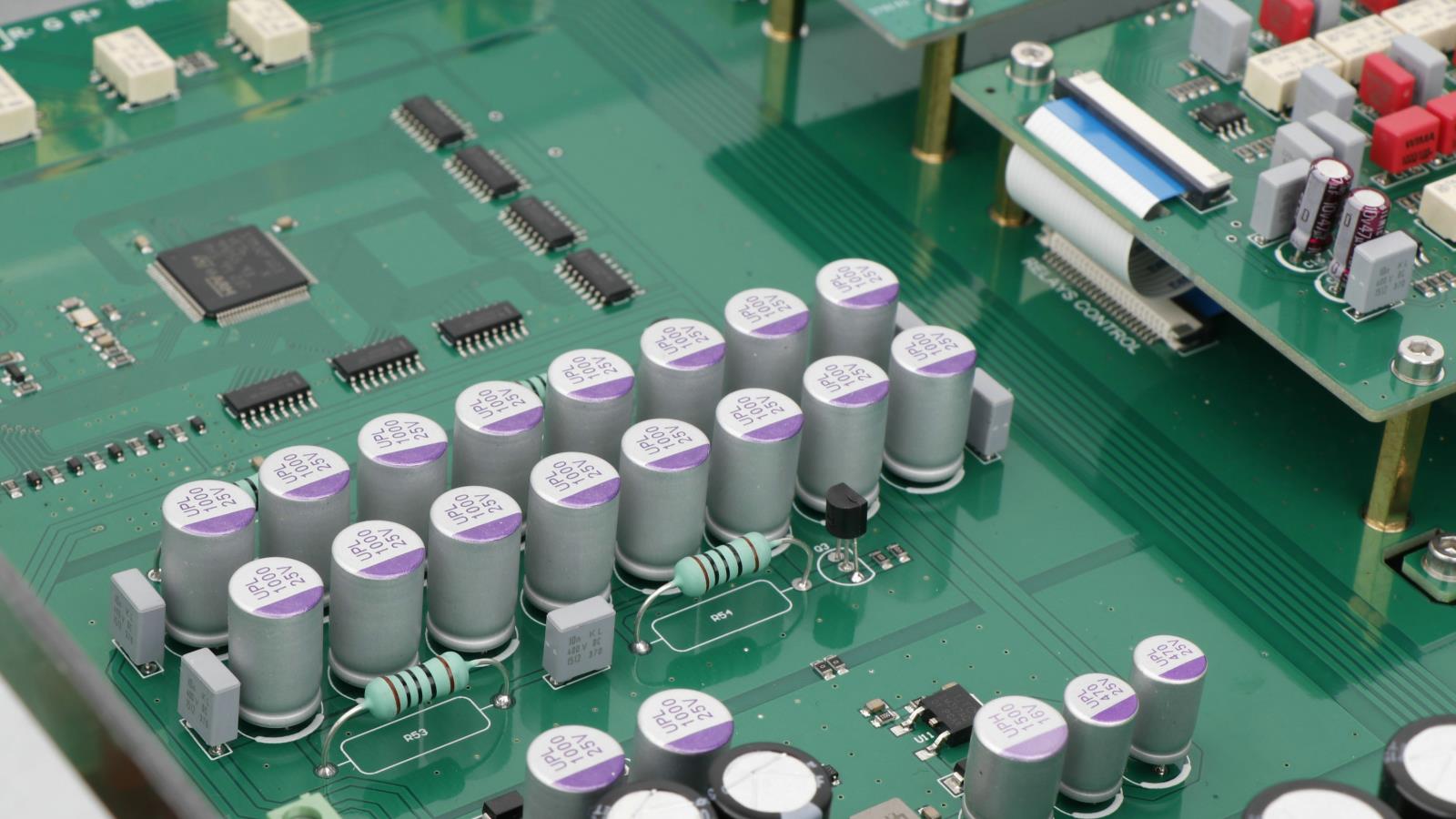

- ● High quality parts

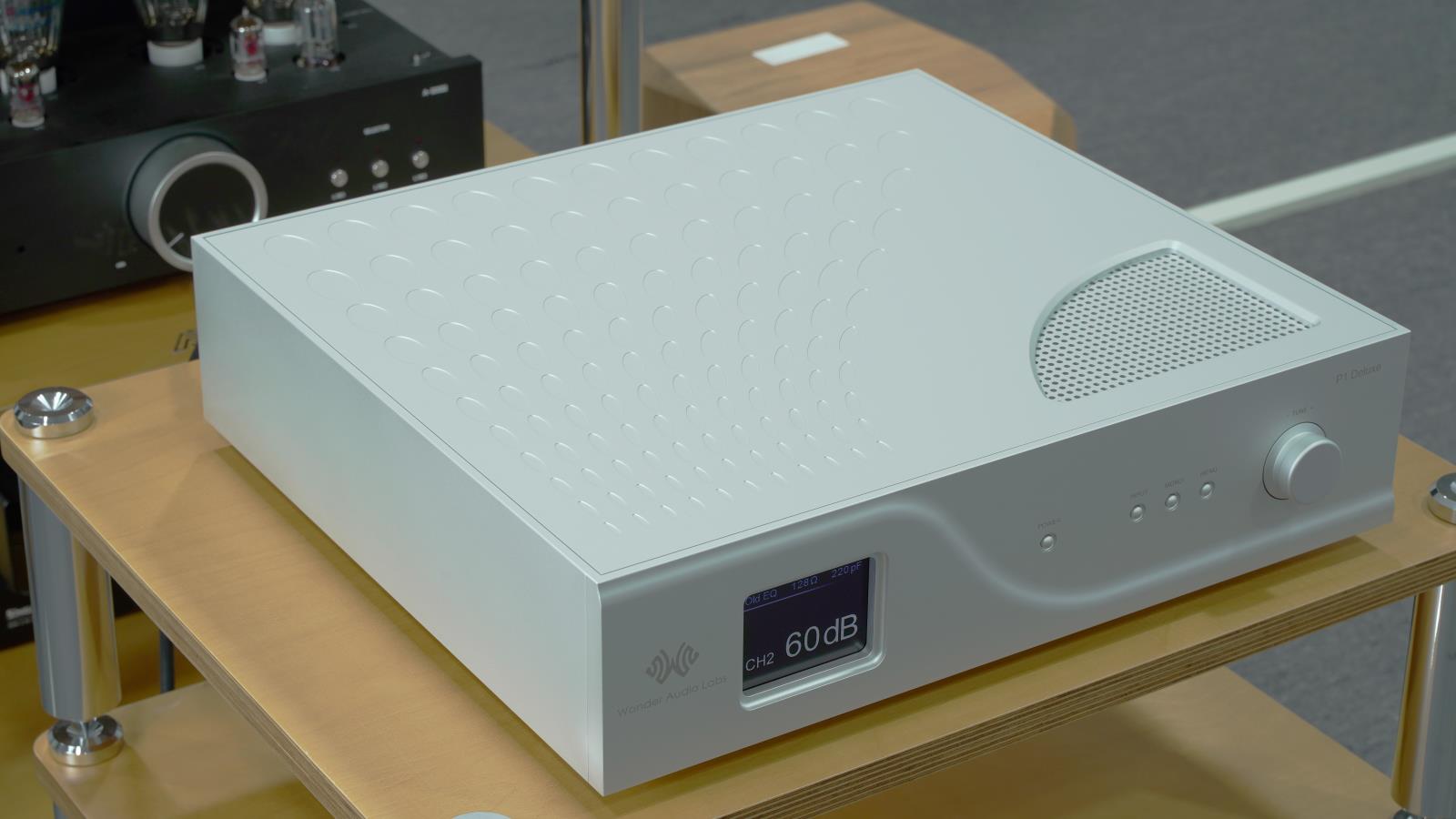

- ● Exquisite processing technology
- ● Proprietary single pole balanced amplifier circuit
